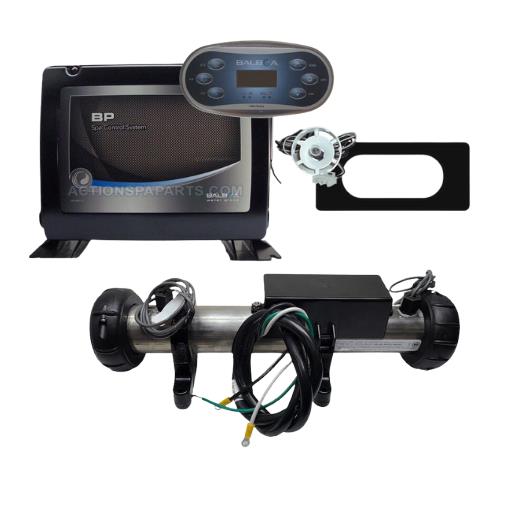

Control System Balboa BP7w/ TP600 Topside

Balboa BP7 Retrofit Spa Control Kit – G6406 Remote 4kw Heater

Product Details

• MFG Part Number: G6406- Remote
• Vendor Item Number: G6406- Remote
• Description: BP7 control system with TP600 topside and Remote 4kW heater
• Dimensions (HxWxL): 8.7 in x 18.5 in x 21.8 in
• Weight: Approx. 16 lbs

Features and Benefits

• Voltage: 230v – 3 Wire, 230v – 4 Wire
• Supports 3-5 pumps and Plug-n-Click connections
• TP600 LCD panel with 6-button layout
• Includes adapter plate, light cord, and overlay
• Programmable system with 32 different options
• Pump: Optional 115/230V
• Heater 4.0KW

This Bundle Kit Includes

Alternate or Replacement Items

• G6ST3 (Spa Touch 3 version)
• G6405 (TP500 version)
• G6407 (TP700 version)

Used In

• Cal Spas
• Master Spas
• Gulf Coast Spa

Related Items

• Fuses:

• SC-30  FUSE, 30A, 115V, TIME DELAYED (30136)Used on F6,F8,and Expander Board
• 26307   Fuse, Balboa, Glass, 2A, 3/4″ Used on F4
• 26905  Fuse, Balboa, Glass .5A, 3/4″ Used on F3
• 26904  BLOWER FUSE, BALBOA, 10A, 250V SHORT, 5X20, BP SYSTEM Used F2 and F7
• 26976  FUSE, BALBOA, 3.15A, 250V, SLOW-BLO Used on F5
• 21087   2-Speed Pump cord /a>
• 21086   2-Speed Pump cord /a>   1-Speed Pump or Blower cord

• Optional Accessories

• Balboa Wifi Gateway 59303
• Balboa Interface Module 50350
• Balboa Control System G6405

• Replacement option for

• All Balboa VS and EL systems.389173, VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515SZ, VS515Z, VS520Z, VS520SZ, VS520DZ, VS525Z
