Description

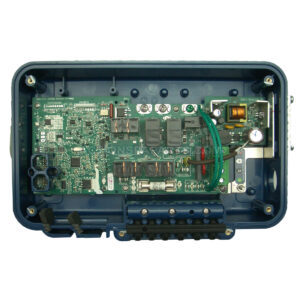

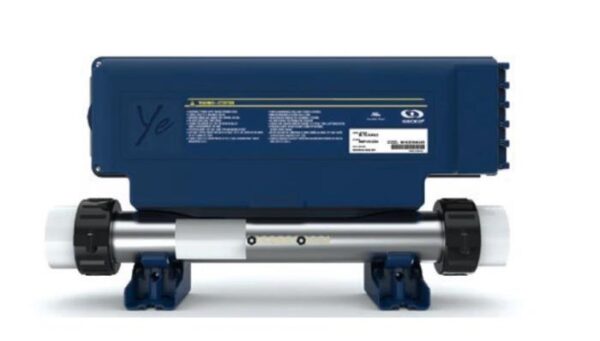

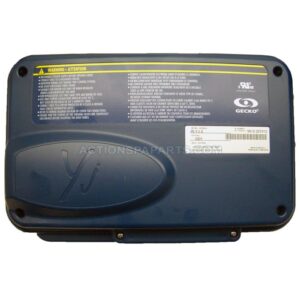

6600-536 Control System D-1 (Dimension One) Gecko YE-5 V3 w/ Heater
Mfg # 0610-221094-642
Replaces 01782-1000Y6 used from 2015-2020.
This newly designed lower control is used in all @Home Spas from 2015 to current.
Its heater includes integrated High Limit, Temperature Sensors and Pressure Switch.
If your spa was built between 2015-2021, you’ll have to remove your current pressure switch and replace it with a plug to fill the hole (6000-124).
Uses 6600-537-1 or 6600-537-2 Upper Control Panel
All control Systems and circuit boards require correct component voltage set-up and spa configuration.
Please reference the below as well as wiring schematics on the back side of the spa pack cover.
Technical and Installation:
This pack has an internal pressure switch. If the pressure switch in your existing pack is a taller style switch, it may get in the way of the space between this new style pack and the heater assembly.
You can simply plug this threaded hold with a fitting of the same size, and remove the old pressure switch, as it is no longer needed. (6000-124)
2015+
