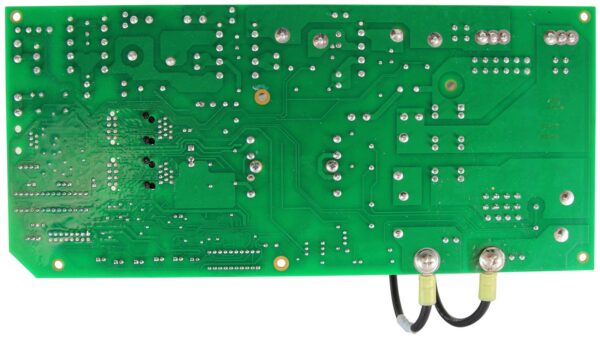

VS501Z Circuit Board G1152

SPECIFICATIONS

• Voltage:                           115v / 230v
• Power Requirements:      115 or 230 VAC, 60Hz. GFCI Protected Service (3 Wire 115v, 4 Wire 230v)
• Neutral Required:             Yes
• Circuit Breaker Rating_     20A (115v) & 50A (230v)
• System Series:                Balboa VS
• Configuration:                 1-2 Pumps & Additional Circulation Pump (High Flow Only). Ozone, 12v Light

FEATURES

• Pump #1 Dual Speed
• Pump #2 Single Speed Or Single Speed Blower (Must not exceed 12 amps.)
• High Flow Single Speed Circulation Pump
• Ozone (If Circulation Pump is Used, Ozone and Circulation Pump Must be the Same Voltage)
• 12v Light
• A/V Connection (120v or 230v)

IMPORTANT

• Pump #2 MUST be 230v, and MUST NOT exceed 12 amps.
• Installing a Pump #2 that exceeds 12 amps can cause damage and possibly Fire.
• If your Pump #2 is either (120v), or (230v and over 12 amps), DO NOT purchase this circuit board.
• Use of copper straps on heater to pc board connection voids warranty
