Control System, Kit, Gecko, IN.YE-5, 1.0/4.0kW, 120/240V, w/ IN.K300 + IN.Touch3 WiFi

Gecko IN.YE-5 Version 3 — Complete Bundled Spa Control System with IN.K300 & Wi-Fi, 4.0 kW

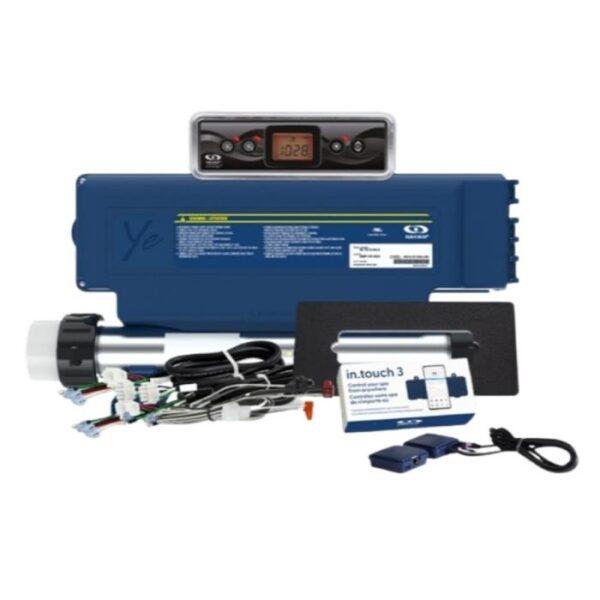

The Gecko IN.YE-5 V3 Bundle (0610-300014) is a fully integrated, ready-to-install spa control system
designed for entry-level to mid-range residential hot tubs. This kit pairs the latest-generation IN.YE-5 V3
control box with a 4.0 kW stainless flow-through heater, the IN.K300 two-pump topside keypad, an IN.TOUCH 3
Wi-Fi module, and all required AMP cabling. It is a direct retrofit replacement for most Balboa and older
electro-mechanical spa packs, and serves as the successor to the discontinued 0610-221046-355 line. The V3
board brings a boosted CPU, external memory, higher-capacity relays, and integrated in.mix 300 color LED
support compared to the previous generation.

Bundle Contents

• 0610-221126-698 — IN.YE-5-V3 Control System with 4.0 kW Heater (core unit)
• 0608-521047 — IN.TOUCH 3 Wi-Fi Module
• BDLK3002OP — IN.K300 4-Button Dual-Pump Topside Keypad with Overlay
• 9917-102239 — Adapter Plate for IN.K300
• 21087 (x2) — Cord 5 ft, 2-Speed, 4-Wire AMP Plug
• 21086 (x2) — Cord 5 ft, 1-Speed / Blower / Circ / Ozone, 3-Wire AMP Plug
• 9920-400489 — Cable Light Socket, 3-Pin, 8 ft
• 9920-401507 — Cable Light Harness Adapter, 3-Pin to 2-Pin

Key Features

• 5 Configurable High-Voltage Outputs — supports Pump 1 (1 or 2 speed), Pump 2 (1 or 2 speed), Blower, Circ Pump, and Ozonator in flexible combinations
• 4.0 kW Integrated Flow-Through Heater — stainless steel with dry-fire protection (in.flo); standard 2″ x 15″ heater
• IN.K300 Topside Keypad Included — 4-button dual-pump interface; 6-1/4″ x 2-1/4″, 10 ft cord
• IN.TOUCH 3 Wi-Fi Module Included — full smartphone remote control via free Gecko iOS and Android app
• V3 Platform — boosted CPU, external memory, larger-capacity relays, in.mix 300 color LED integration (1.3A output)
• 120V / 240V Convertible — each output voltage individually configurable on the board
• Solid-State Water Flow Detection — no pressure switch required; self-regulating and maintenance-free
• IPX5 Waterproof Enclosure — in.seal protection on all connectors and power box
• in.stik OTA Updates — automated software upload via plug-in connection
• Audio Ready & Swim Spa Compatible — direct audio port; supports extended output configurations

Technical Specifications

Compatible Keypad Options

• IN.K200 — entry-level 2-pump keypad BDLK2002OP
• IN.K300 — standard 4-button dual-pump keypad — included in this bundle BDLK3002OP
• IN.K450 — mid-range 3-pump multi-function keypad BDLK4503OP
• IN.K600 — static display advanced keypad BDLK6005OP
• IN.K8 — compact 8-button keypad BDLK83OP
• IN.K120 — auxiliary/secondary keypad 0607-005019
• IN.K800 — premium full-color 10-button keypad (sold separately) 0607-008030
• IN.K1000 — premium touchscreen keypad (sold separately) 0607-005042
• IN.K1001 — premium touchscreen keypad, alternate model (sold separately) 0607-008152

Lights for IN.YE – 12 Volt DC Light Only – Use the Following Options

Replaces / Supersedes

• 0610-221046-355 (discontinued V2 IN.YE-5 spa pack)
• 0610-221002A and 0610-221020 (older IN.YE-5 variants)
• Compatible retrofit for most Balboa spa packs and older electro-mechanical systems
