Control System Gecko In.YE-5 V3 4.0kW 115/230v Does not inlcude cords, topside or wifi
$472.13
- Description
- Reviews (0)
Description
PART # 0610-221126-728

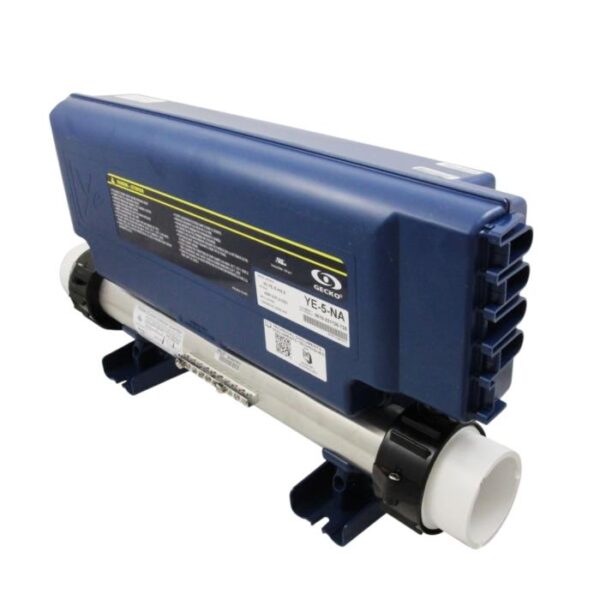

Control Box only Gecko In.Ye-5 V3 4.0kW 115/230v
Best Replacement for 0610-221046-355
Lower Level 1 is 2 speed Pump 1
Can run up to 3 pumps – Can use with Swim Spas with Dual Packs
Review Install Guide for Lower Level Settings
Key Features
- 5 Configurable High-Voltage Outputs — supports Pump 1 (1 or 2 speed), Pump 2 (1 or 2 speed), Blower, Circ Pump, and Ozonator in flexible combinations
- 4.0 kW Integrated Flow-Through Heater — stainless steel with dry-fire protection (in.flo); standard 2″ x 15″ heater
- V3 Platform — boosted CPU, external memory, larger-capacity relays, in.mix 300 color LED integration (1.3A output)
- 120V / 240V Convertible — each output voltage individually configurable on the board
- Solid-State Water Flow Detection — no pressure switch required; self-regulating and maintenance-free
- IPX5 Waterproof Enclosure — in.seal protection on all connectors and power box
- in.stik OTA Updates — automated software upload via plug-in connection
- Audio Ready & Swim Spa Compatible — direct audio port; supports extended output configurations
Technical Specifications
Model SeriesIN.YE-5 Version 3 (V3)
Part Number0610-221126-728
Supply Voltage115V / 230V (4-Wire Convertible)
Heater Output1.0 kW / 4.0 kW (Fixed Bottom)
Heater Dimensions2″ OD x 15″ Length
Number of Outputs5 Configurable Relays
Light OutputStandard 12 Vdc
Keypad IncludedNone
Flow DetectionSolid-State (No Pressure Switch)
Waterproof RatingIPX5 (in.seal Technology)
Min. Flow Rate20 GPM
Frequency60 Hz
Circ Pump ReadyYes (115V / 230V)
Manufacturer Warranty2 Year (Gecko Alliance)
Compatible Keypad Options
- IN.K200 — entry-level 2-pump keypad BDLK2002OP
- IN.K300 — standard 4-button dual-pump keypad — included in this bundle BDLK3002OP
- IN.K450 — mid-range 3-pump multi-function keypad BDLK4503OP
- IN.K600 — static display advanced keypad BDLK6005OP
- IN.K8 — compact 8-button keypad BDLK83OP
- IN.K120 — auxiliary/secondary keypad 0607-005019
- IN.K800 — premium full-color 10-button keypad (sold separately) 0607-008030
- IN.K1000 — premium touchscreen keypad (sold separately) 0607-005042
- IN.K1001 — premium touchscreen keypad, alternate model (sold separately) 0607-008152
Lights for IN.YE – 12 Volt DC Light Only – Use the Following Options
Replaces / Supersedes
- 0610-221046-355 (discontinued V2 IN.YE-5 spa pack)
- 0610-221002A and 0610-221020 (older IN.YE-5 variants)
- Compatible retrofit for most Balboa spa packs and older electro-mechanical systems
Installation Note: Minimum 20 GPM flow rate required. Two-speed pumps use two of the five
available outputs. When using both circ pump and ozonator at different voltages, an AMP Splitter Harness
(9920-401369, sold separately) is required. Wi-Fi control requires the IN.TOUCH 3 (not included) paired with the free Gecko app for iOS or Android.
available outputs. When using both circ pump and ozonator at different voltages, an AMP Splitter Harness
(9920-401369, sold separately) is required. Wi-Fi control requires the IN.TOUCH 3 (not included) paired with the free Gecko app for iOS or Android.
