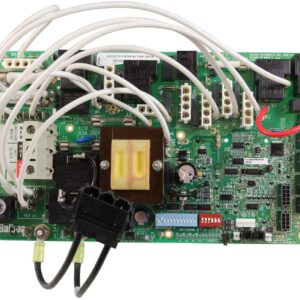

EL2000M3 Circuit Board G1222

• Model Number:                    G1222 (Formally 53834 With Several Revisions)
• System Series:                    EL2000
• Chip Number:                      EL2000M3R2(x)
• Control System Number:     55065-02
• Voltage:                               115v / 230v
• Neutral Required:                Yes
• Circuit Breaker Rating_        20A (115v) & 50A (230v)
• Power Requirements:         115 or 230 VAC, 60Hz. GFCI Protected Service (3 Wire 115v, 4 Wire 230v)

FEATURES

• Pump #1 Dual Speed
• Pump #2 Single Speed
• High Flow Single Speed Circulation Pump
• Air Blower (Single Speed)
• Ozone (If Circulation Pump is Used, Ozone and Circulation Pump Must be the Same Voltage)
• 12v Light
• A/V Connection (120v or 230v)

IMPORTANT NOTES

• This circuit board will NOT replace Thermo Spa 55000-02, 55000-03. 55000-04, 55001, TS2000R2A, TS2000R2B & TS2000R2C, QC2000
• If your spa is a Thermo Spa, you will need to contact them to get the correct circuit board for your system.
• Installs in a plastic box only. This board will not install in the metal box.
• This Circuit Board is equipped with M7 Technology (Does not require a pressure switch or external sensors)
• Use of copper straps on heater to pc board connection voids warranty
