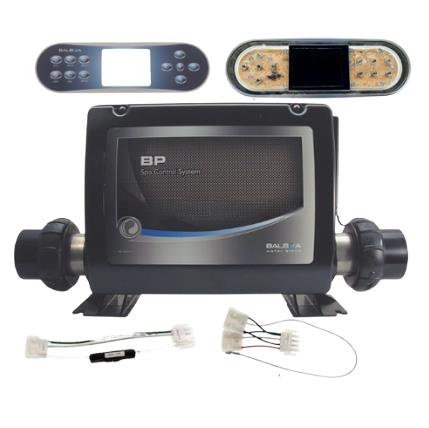

Control System Balboa BP7w/ TP700 Topside

G6407 Balboa® Topside TP700 control, control systems BP7 and 4kW heater.

Features:

• Voltage: 230v – 3 Wire, 230v – 4 Wire
• Can operate up to 5 pumps (3 pumps can be used at the same time)
• Programmable system with 32 different options
• Pump: Optional 115/230V
• Heater 4.0KW

  This Bundle Kit Includes

• Control Box G4361
• TP 700Topside Control panel 57278
• TP700 4 pump Overlay 17391
• TP700 Topside adapter plate 15478 – Not Included, must purchase separate
• Light cord 25098

Optional Accessory:

Wifi:

• 59303  WIFI CONTROL, BALBOA, INTERFACE MODULE

  Fuses:

• SC-30  FUSE, 30A, 115V, TIME DELAYED (30136)
  Used on F6,F8,and Expander Board

• 26307   Fuse, Balboa, Glass, 2A, 3/4″ Used on F4
• 26905  Fuse, Balboa, Glass .5A, 3/4″ Used on F3
• 26904  BLOWER FUSE, BALBOA, 10A, 250V SHORT, 5X20, BP SYSTEM Used F2 and F7

  26976  FUSE, BALBOA, 3.15A, 250V, SLOW-BLO Used on F5

  Replacement option for

• Most VS, EL and BP Systems 389173, VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515SZ, VS515Z, VS520Z, VS520SZ, VS520DZ, VS525Z
