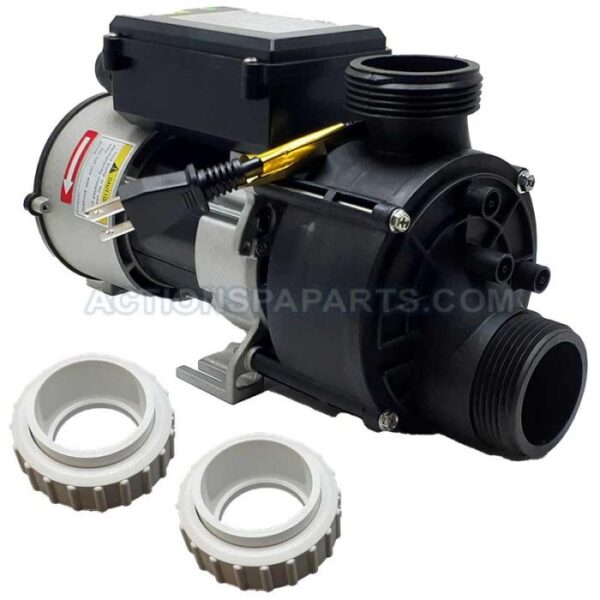

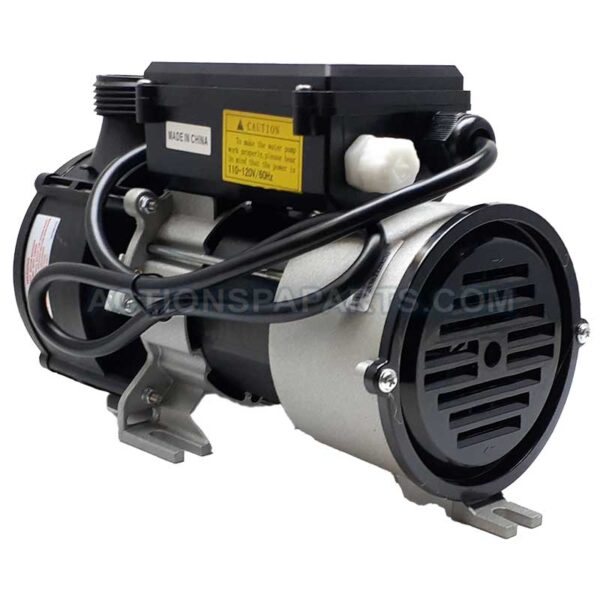

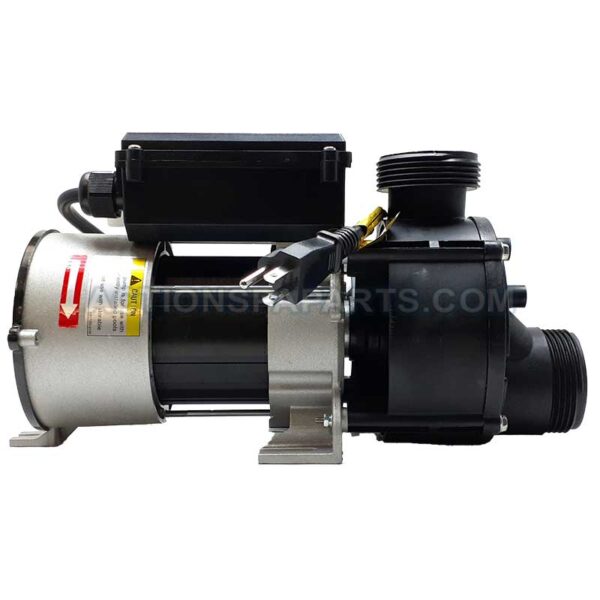

Bath Pump LX .75HP 7.5A 120V w/ Air Switch

Lingxiao LX Pumps – Pump, Bath, LX WCH, 7.0A, 115v, 1.5″, w/Air Switch – WCH100

This model LX pump is commonly used to replace Waterway Genesis and Balboa Vico WOW pumps.

Dimensions: 13-3/16″L x 5-1/4″W x 6-15/16″H

• Speed 1 Speed (1-Spd)
• Motor Voltage 115v
• Suction Style Bottom
• Suction Connection Type Male Buttress Thread (mbt)
• Suction Pipe Size 1-1/2″
• Discharge Style Center
• Discharge Connection Type Male Buttress Thread (mbt)
• Discharge Pipe Size 1-1/2″
• Horsepower 1.0hp
• Motor Frame 48 Frame Thru-Bolt
• Motor Amperage/Wattage 7.0A

Replaces: 753746-402 , PX10000SCB , WPP600A, WBH100
